Principle Characteristic

NFS22 baffle-type flow switch is a new structure flow switch developed by our company's researchers specializing in flow and differential pressure meters to analyze the shortcomings of current flow switches in the market. It follows the simple and reliable design concept, and greatly improves the reliability of flow switches from the structure, which can be compared with non-traditional target flow switches. Plug - in installation, mechanical flow switch. Built-in micro trigger switch. Minimal pressure loss, good repeatability,anti-fouling ability, through the knob to achieve accurate switching Settings.
The mechanical part is securely isolated from the electronic part. The product does not contain bellows which are easy to cause faults. The electrical parts do not directly contact with metal parts with large temperature difference, and there is no problem that the electrical parts will produce condensate water and lead to corrosion. It has a variety of types for customers to choose to adapt to different applications. The use of imported micro switch as an electrical action part, through the current is large, completely avoid the use of magnetic switch improper easy to damage the problem, is the central air conditioning and industrial fluid control of the preferred flow protection products.

Product Application

Gas-liquid dual-use, can be widely used in industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning field. Flow switch magnets are not in flowing waterways and can be used in sewage systems and work properly.

Technical Parameter

◇Voltage: No status indicator, the maximum voltage can be reached
250VAC, with status indicator, voltage is
24 VDC plus or minus 10%
◇ Maximum current (switch capacity) : 5A
◇ Connection mode: DIN 43650A connector/direct wire optional
◇ Output: SPDT micro switch, one point/two point output
Select, and optionally with a status indicator
◇ Pressure resistance: 25bar (higher pressure can be customized)
◇ Average pressure loss: 0.01bar (maximum flow)
◇ Operating temperature: -10... 80 °C
Shell protection grade: IP65
◇ Material: Liquid shell: nickel-plated brass
Baffle: stainless steel
Seal: NBR
Electrical housing: ABS

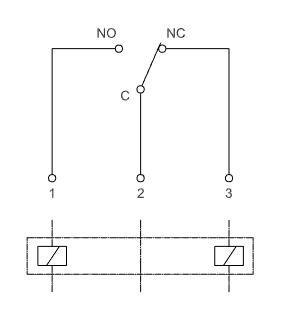

Wiring diagram

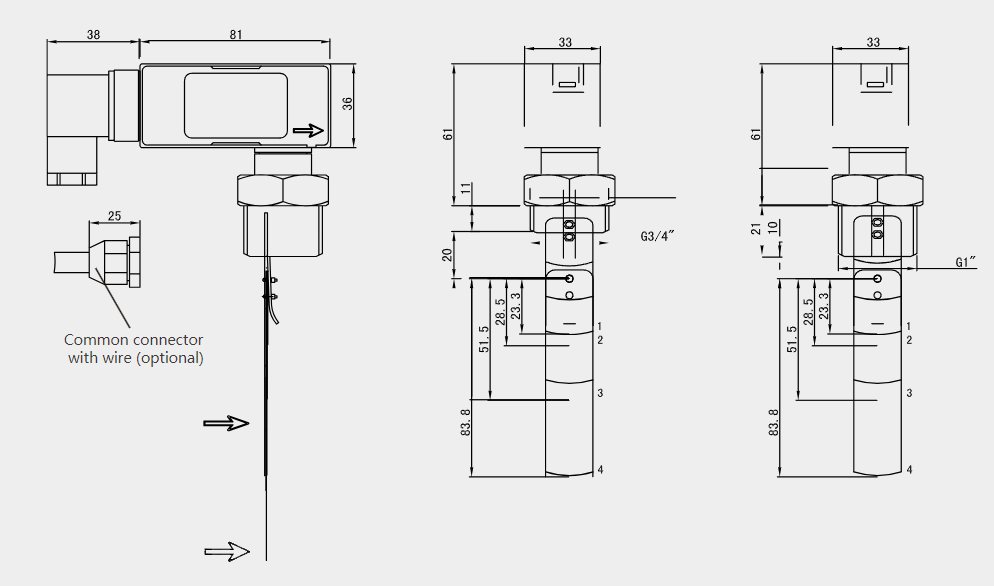

Dimensional drawing (mm)
