  • Thermal Conductivity Flow Switch (explosion-proof )NK33EX
  • Thermal Conductivity Flow Switch (explosion-proof )NK33EX
Thermal Conductivity Flow Switch (explosion-proof )NK33EX Thermal Conductivity Flow Switch (explosion-proof )NK33EX

Thermal Conductivity Flow Switch (explosion-proof )NK33EX

  • Brand：ZANKE
  • Model：NK-33EX
  • Description：Introduction Thermal dispersion flow switch is a precise flow sensing device, whose movement principle is heat diffusion. The probe consists of two temperature sensors. One sensor measures the temperature of the fluid when the probe is imme
  • Online Consultation
Introduction
Thermal dispersion flow switch is a precise flow sensing device, whose movement principle is heat diffusion. The probe consists of two temperature sensors. One sensor measures the temperature of the fluid when the probe is immersed. The other sensor is heated by a constant power. This creates a temperature difference between two sensors.
Temperature difference is an inverse ratio to the flow velocity. The probe and housing are made by stainless steel or engineering plastic.
This creates a temperature difference between two sensors. Temperature difference is an inverse ratio to the flow velocity. The probe and housing are made by stainless steel or engineering plastic.

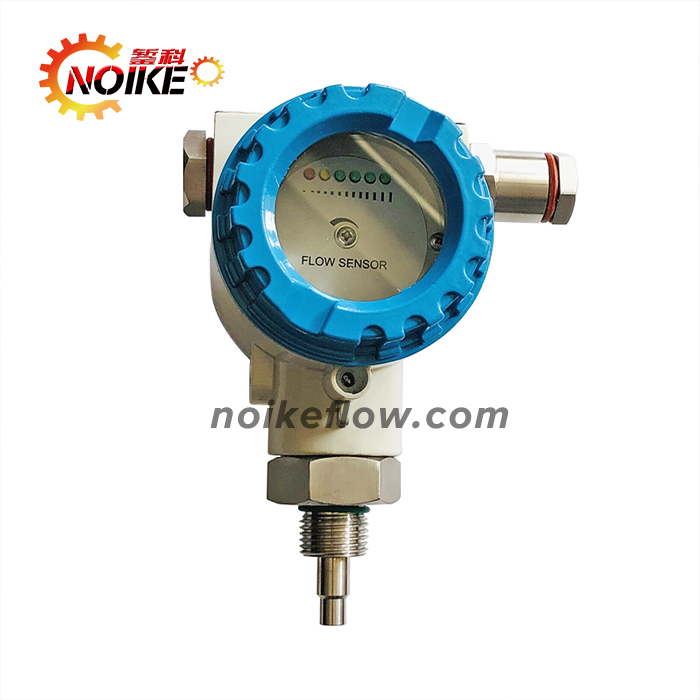

Thermal Conductivity Flow Switch (explosion-proof )NK33EX

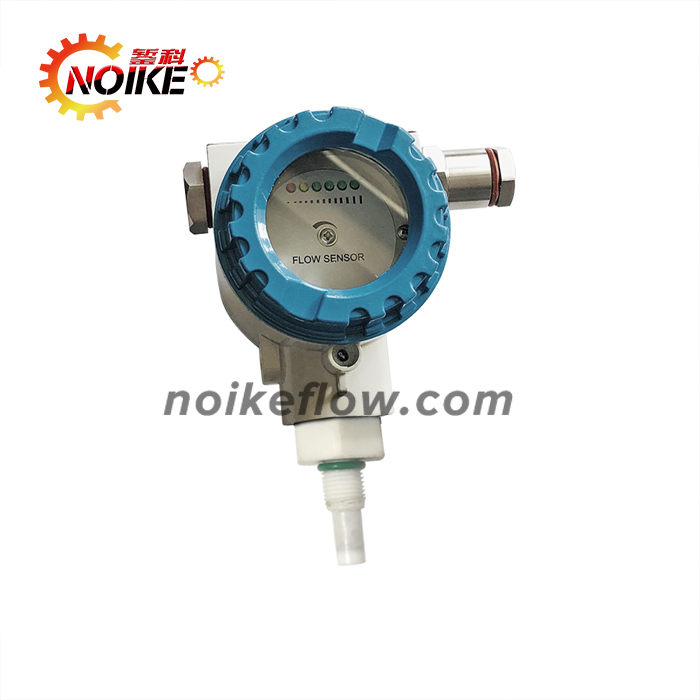

Anti-corrosion explosion-proof flow switch NK33EXF
Specification
  1. Flow velocity: 1~150 cm/s (water), 3~300 cm/s(oil) or, water: 1~70 cm/s, oil: 2~100 cm/s
  2. Warm-up time: 15 sec. (approximate)
  3. Operation temperature:-4?F~176?F (-20?C~80?C)
  4. Ambient temp: -4?F~176?F (-20?C~80?C)
  5. Operation pressure: 100 bar
  6. Housing rating: IP67
  7. Enclosure material/rating: Aluminum / Ex d IICT6
  8. Wetted materia: 304SS
  9. Supply voltage: 24Vdc A 20%
  10. Output: Open collector---NPN / PNP, 400 mA max. (with current limiting).
Relay--- 1A/30Vdc, 0.3A/125Vac (NO or NC), 5A/250Vac max. (NO)

Dimension (G1/2)

Order information

For more product detailsand purchases, please contact E-mail:noike009@foxmail.com / noike009@163.com
